48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit

Product image 1
1 / 9
+4

48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit

Package Includes
12x Bifacial 195W Mono Solar Panel
1x 5000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG Extension Cable with MC4-MC4
12x Z Mounting Bracket
Battery Bank Options-
10.24kWh Lithium Battery Bank (optional)
with
2x 48V(51.2V) 100Ah Server Rack Battery

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A Maximum current: 9.85A
Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

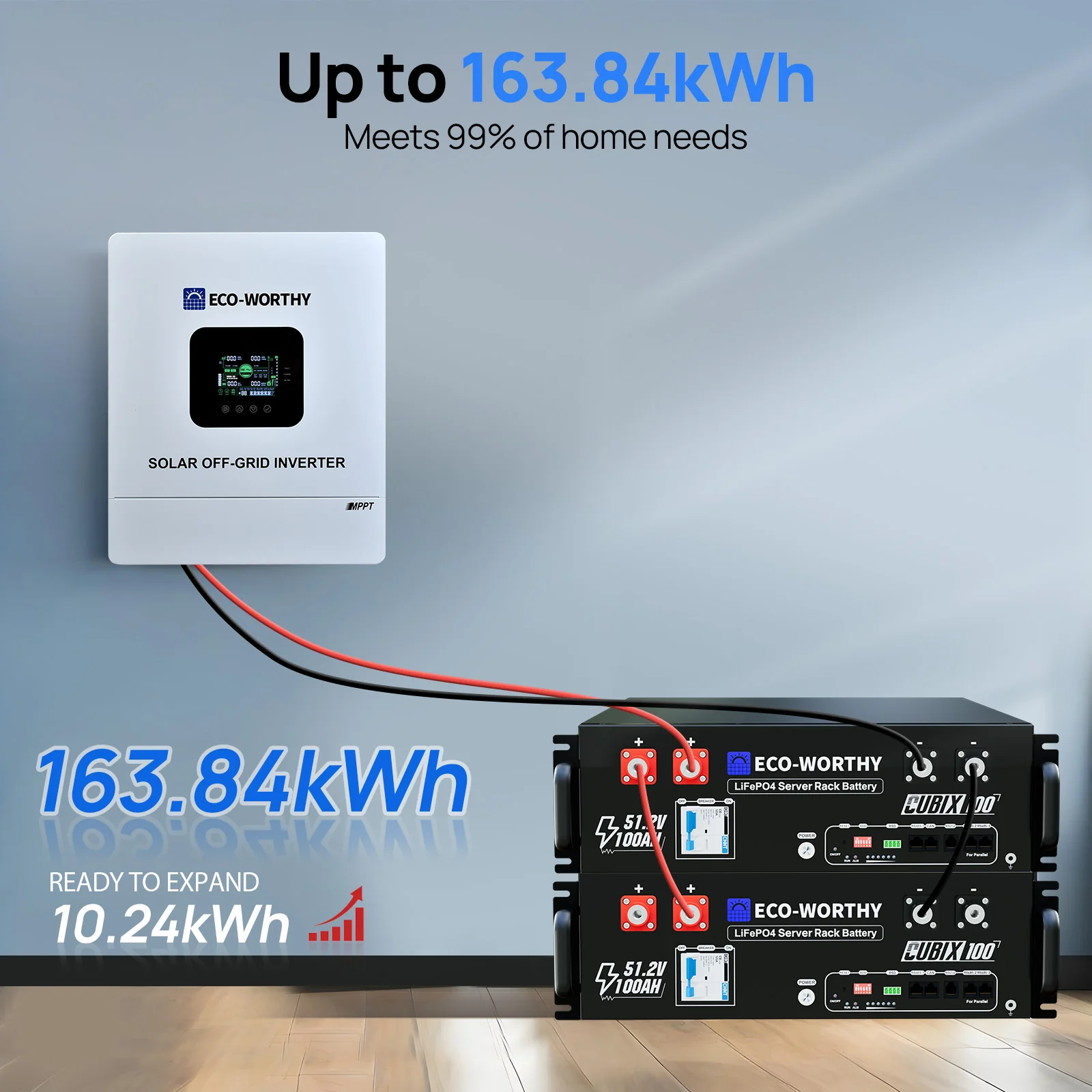

5000W 48V All-in-one Inverter

Rated Input Voltage: 220/230VAC Maximum Efficiency: >92%
Input Voltage Range:
(170Vac~280Vac) ±2%, (90Vac-280Vac) ±2%
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz
AC input Max AC Bypass Current:40A AC input MAX AC Charge Current:60A
Rated Output Power: 5000W PV Operating Voltage Range: 120-500VDC
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
Weight: 12kg (26.46lb)

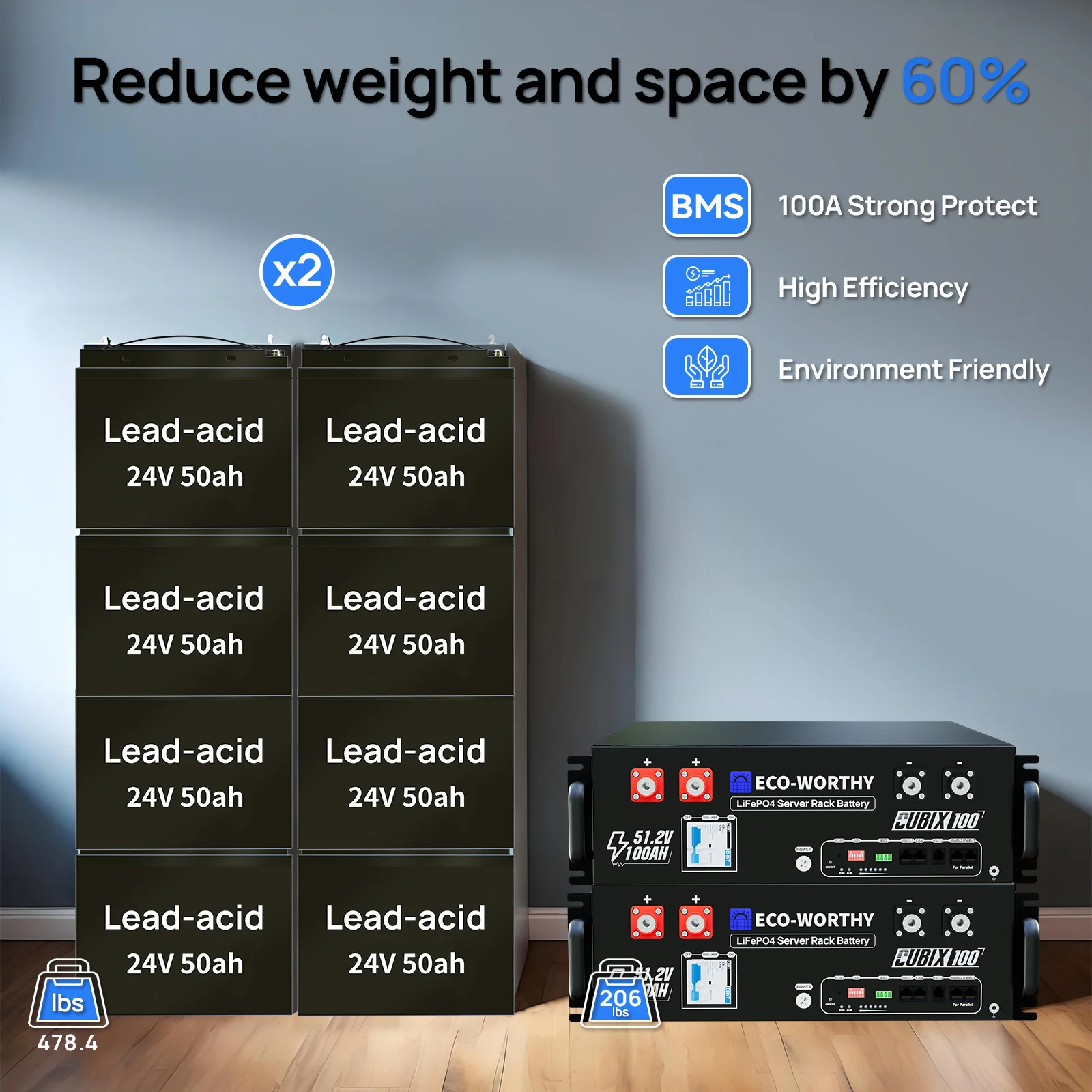

48V(51.2V) 100Ah Server Rack Battery

Battery Capacity: 100Ah Battery Power: 5120Wh
Rated Voltage: 51.2V Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20-55℃ Maximum Charge Voltage: 58.4V
Screw size: M8 Battery Size: 22.55*17.13*5.63inch
Battery Weight: 99 lbs Each battery comes with a pair of battery parallel cables
Certification Test:IEC62619

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters(16 ft) Conductor: Tinned copper wire
AWG: 12 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG


Package Includes
12x Bifacial 195W Mono Solar Panel
1x 5000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG Extension Cable with MC4-MC4
12x Z Mounting Bracket
Battery Bank Options-
10.24kWh Lithium Battery Bank (optional)
with
2x 48V(51.2V) 100Ah Server Rack Battery

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A Maximum current: 9.85A
Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

5000W 48V All-in-one Inverter

Rated Input Voltage: 220/230VAC Maximum Efficiency: >92%
Input Voltage Range:
(170Vac~280Vac) ±2%, (90Vac-280Vac) ±2%
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz
AC input Max AC Bypass Current:40A AC input MAX AC Charge Current:60A
Rated Output Power: 5000W PV Operating Voltage Range: 120-500VDC
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
Weight: 12kg (26.46lb)

48V(51.2V) 100Ah Server Rack Battery

Battery Capacity: 100Ah Battery Power: 5120Wh
Rated Voltage: 51.2V Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20-55℃ Maximum Charge Voltage: 58.4V
Screw size: M8 Battery Size: 22.55*17.13*5.63inch
Battery Weight: 99 lbs Each battery comes with a pair of battery parallel cables
Certification Test:IEC62619

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters(16 ft) Conductor: Tinned copper wire
AWG: 12 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG


$1,692.10

Original: $4,834.57

-65%
48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit

$4,834.57

$1,692.10
